Toradex Display Starter Kit

SCX1001511GGC49 rev.7

10.1" 1280 x RGB x 800 (WXGA) px LVDS

Specifications

Technical details

All parameters validated on Toradex hardware.

Display size

10.1"

Resolution

1280 x RGB x 800 (WXGA) px

Brightness

650 cd/m² typ.

Interface

LVDS

Logic supply

3.3 Vdc

Backlight supply

6 to 27 Vdc

Viewing angles

Full IPS

Touch

Industrial PCAP

Cover lens

Black ink deco

Availability

In production

Compatibility

Validated hardware

Display and PCAP device-tree overlays are available for each platform below.

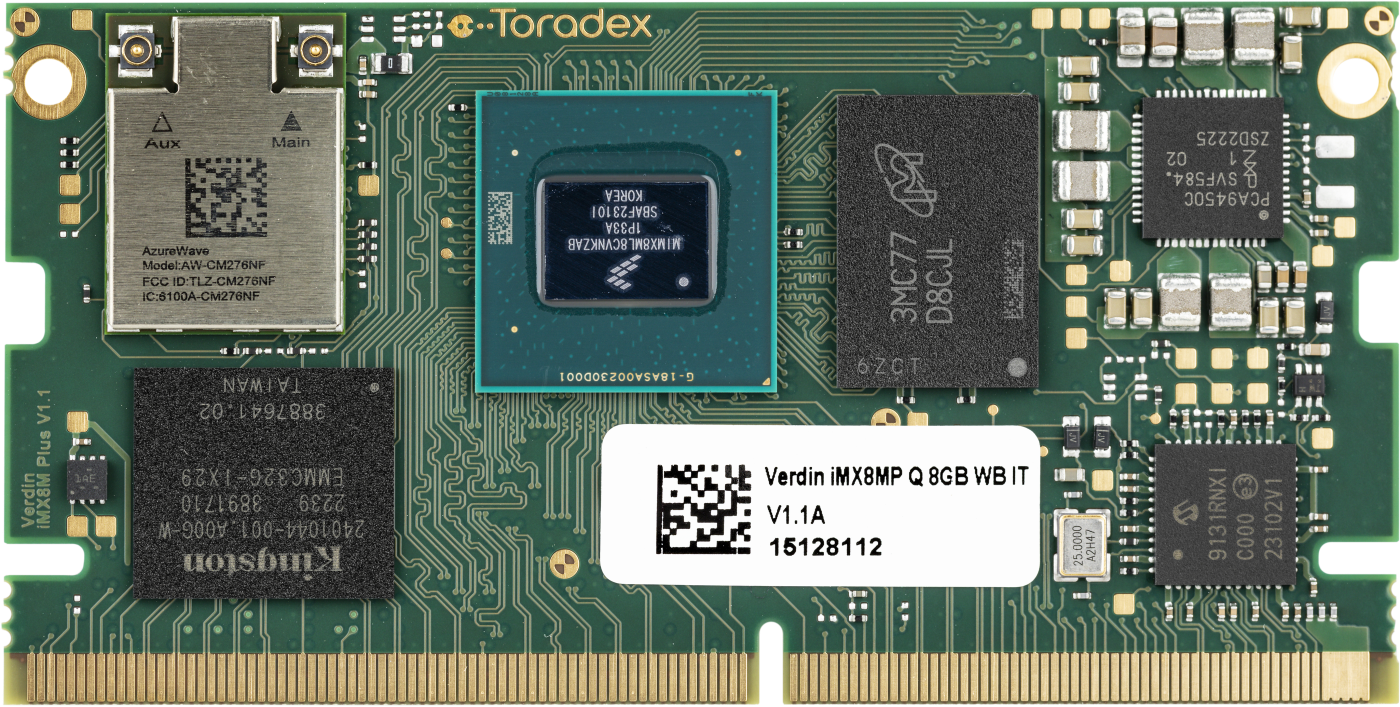

Toradex Verdin

iMX8 & AM62 family SOMs

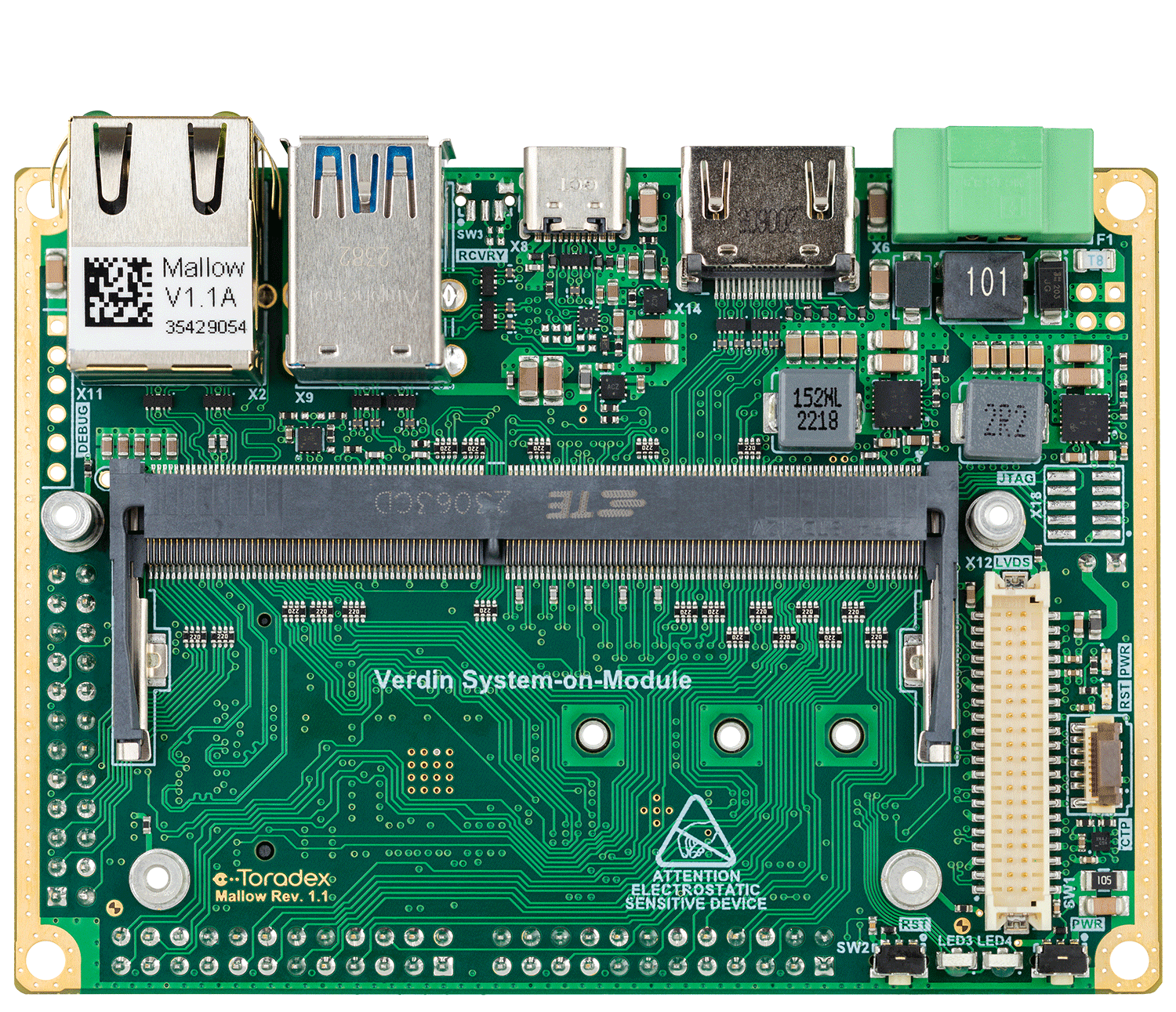

Toradex Mallow

Single Board Computer

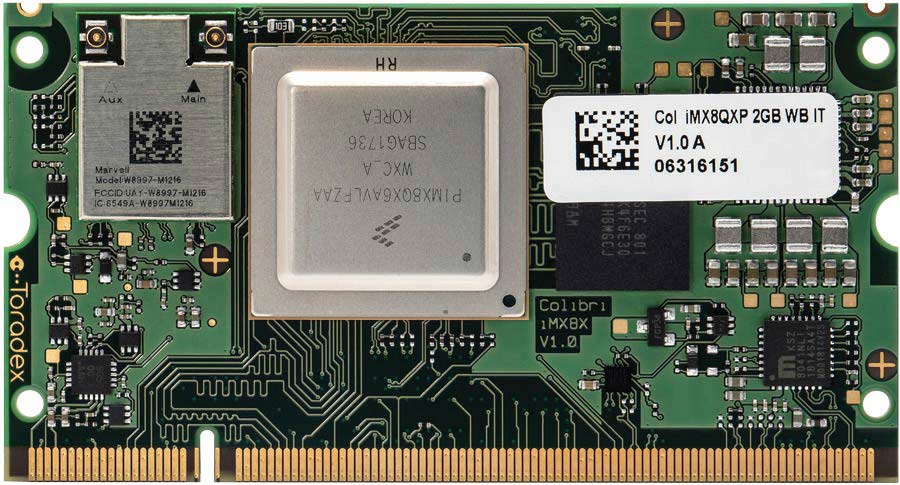

Toradex Colibri

iMX8 family SOMs

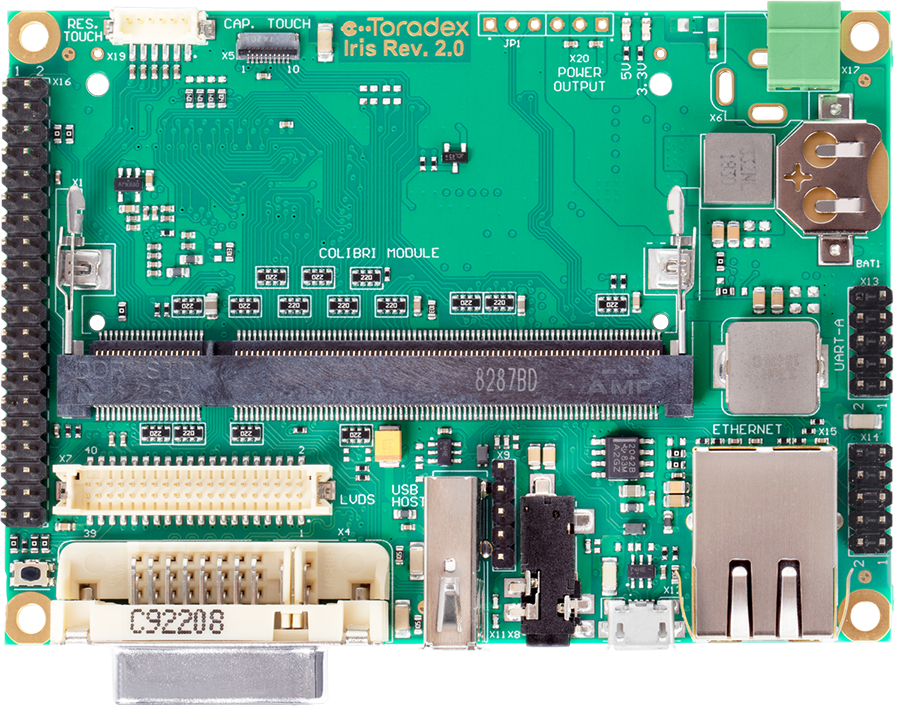

Toradex Iris

Single Board Computer

Torizon OS Linux Yocto
